INDIVIDUAL INVERTER
From 1 to 8 devices in COMBI arrangement Standard SpecificationsFlow: up to 140 m³/h
Head: up to 160 m
Pmax: 16 bar
Start up: soft with inverter
Supply voltage:
- 1×230 V 50 Hz for single-phase sets
- 3×400 V 50 Hz for three-phase sets
Relative humidity: max 50% at 40 °C (without condensation)
Max. altitude at nominal load: 1000 m above sea level
Pumped liquid temperature: clean water between 5°C and +60°C
DETAILS
A second way of splitting (named COMBI) consists of using several pumps in parallel (up to 8) each one driven by a device unit.
In this way, efficiency and the reliability of the pump group is maximized.
Each device controls and protects its pump and the operation is shared among all the connected pumps to average pump wearing; in case of failure the remaining pumps will maintain the pumping operation.

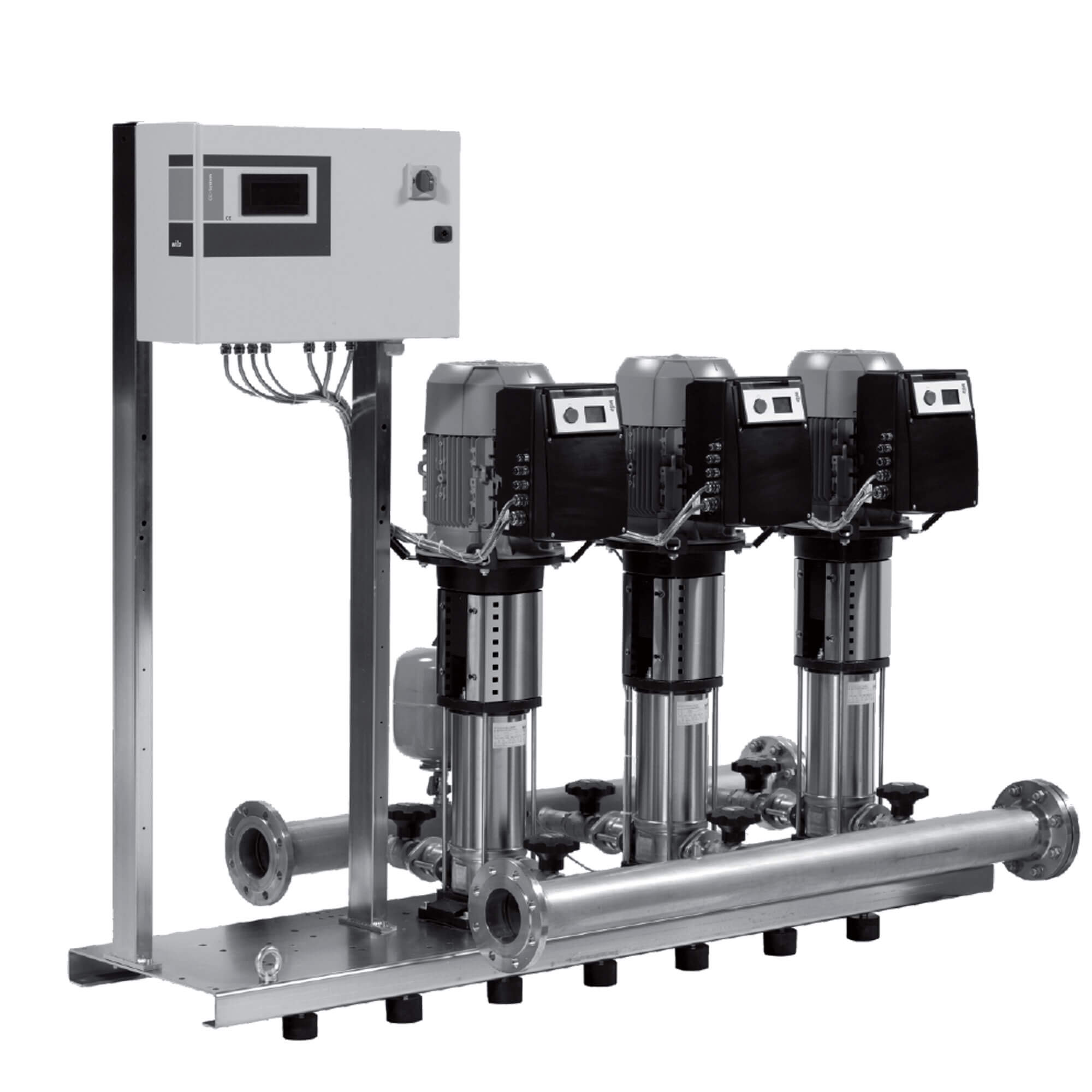

The booster system is equipped with up to 8 pumps connected to external frequency converters (one per pump).
Booster set maintains a constant pressure through continuous adjustment of the speed of the pumps.
The system performance is adapted to the demand through cutting in/out the required number of pumps and through parallel control of the pumps in operation.
Pump changeover is automatic and depends on load, time and fault.
Each pump in operation will run at individual speed.
